D5CLHA
Content

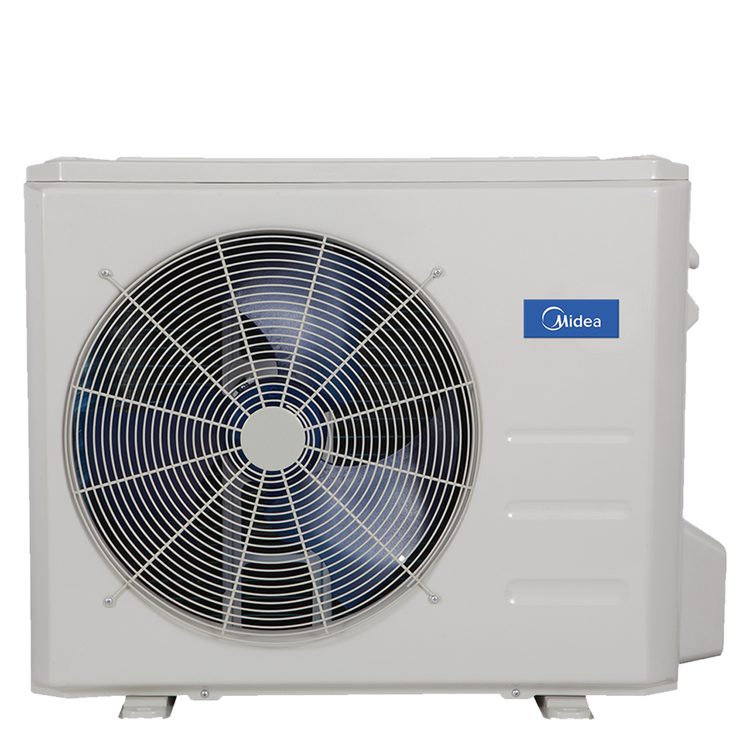

Max Series Single-Zone Light Commercial Heat Pump
D5CLHA
Single-zone light commercial heat pump system with up to 21.3 SEER2 and 11.1 HSPF2 for premium energy savings.
Purpose: Heating & Cooling
Overview
This ductless heat pump is a powerhouse unit with up to 21.3 SEER2 cooling and 11.1 HSPF2 heating efficiency. Features like Refrigerant Leakage Protection and Condenser High-Temperature Protection make this unit smart as well as efficient.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-Zone
Overall Efficiency
Select sizes are ENERGY STAR® certified
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 21.3 SEER2
Heating Energy Savings
Premium
Heating Efficiency
Up to 11.1 HSPF2
Outdoor Sound Performance
Extremely Quiet
Indoor Sound Performance
Not applicable
Sound Level (As Low As)
62.5 decibels
Cooling Capacity
100% at -22° F (-30° C) without additional kit
Cooling Operating Range
-22° ~ 122°F (-30° ~ 50° C)
Heating Capacity
100% at 0° F (-17° C) Up to 75% at -22° F (-30° C)
Heating Operating Range
-22° ~ 75°F (-30° ~ 24° C)
Sizes
3 – 4.8 ton
Voltage
208/230V
Application
Residential
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Up to 21.3 SEER2 and 12 EER2 cooling efficiency
- Up to 11.1 HSPF2 heating efficiency
- Outdoor sound: as low as 62.5 decibels1
- Cooling operating range -22° ~ 122° F (-30° ~ 50° C)
- Heating operating range -22°~75° F (-30°~24° C)
- Piping length: 246 ft. (75m)
- Inverter compressor
- Sizes: 3.0 – 4.8 Ton
- 208/230V
- Built-in basepan heater
- Condesner high-temperature protection
- Refrigerant leakage detection
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
- R-454B refrigerant continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant.
- 7-year compressor, and 5-year parts limited warranty1
1To the original owner, when product is used in an owner-occupied residence, a 7-year compressor, and 5-year parts warranty of your new equipment. See warranty certificate for complete details.
