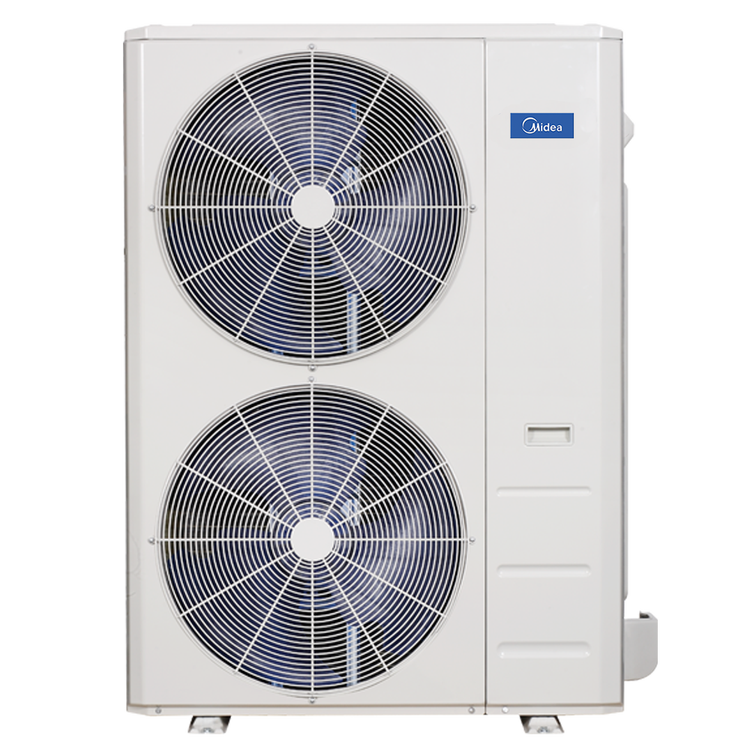

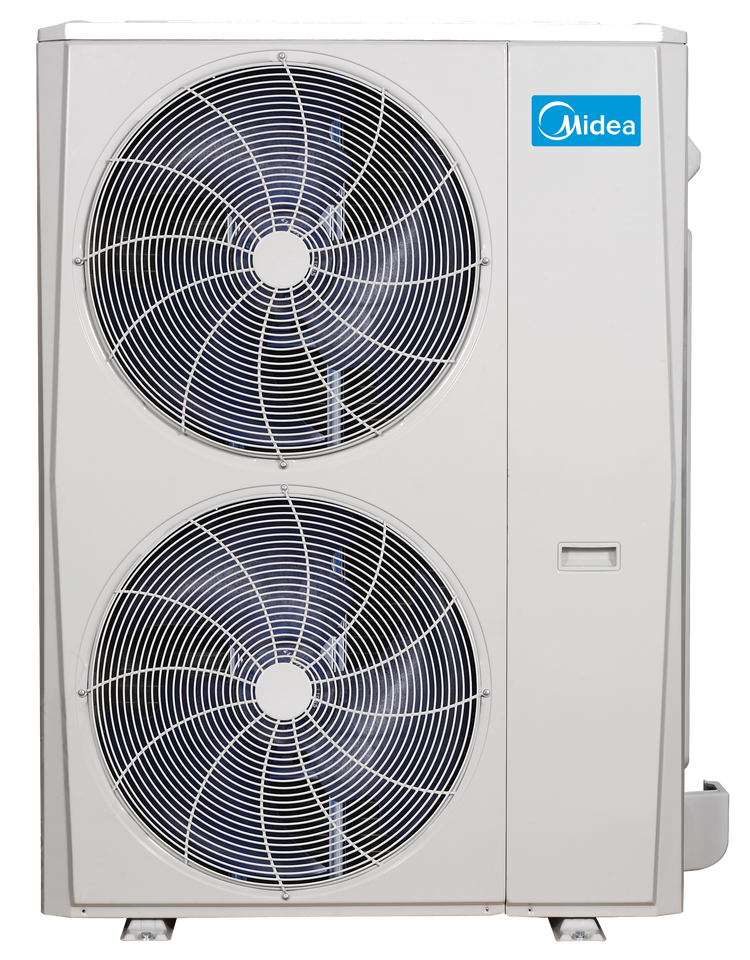

Advantage Series Single-Zone Light Commercial Heat Pump
D5CLRA
Single-zone heat pump compatible with Advantage series indoor units.
Purpose: Heating & Cooling
Overview
This ductless heat pump is an impressive unit with up to 20 SEER2 cooling and 10.4 HSPF2 heating efficiency. It can be matched with Advantage series indoor units for reliable heating and cooling performance. This versatile heat pump can operate in a wide range of outdoor temperatures, providing year-round comfort.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-Zone
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 20 SEER2
Heating Energy Savings
Enhanced
Heating Efficiency
Up to 10.4 HSPF2
Outdoor Sound Performance
Quiet
Indoor Sound Performance
Not applicable
Sound Level (As Low As)
62.5 decibels
Cooling Operating Range
-13° ~ 122° F (-25° ~ 50° C)
Heating Operating Range
-13°~75° F (-25°~24° C)
Sizes
3.0 – 4.8 Ton
Voltage
208/230V
Application
Light Commercial
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Sizes: 3 – 4.8 ton
- Up to 20 SEER2 and 10.2 EER2 cooling efficiency
- Up to 10.4 HSPF2 heating efficiency
- Available in 208/230V
- Built-in base pan heater
- Inverter compressor
- Piping length: Up to 246 ft. (75m)
- Refrigerant leakage detection
- Condenser high-temperature protection
- Quiet outdoor sound operation, as low as 62.5 decibels
- 7-year compressor, and 5-year parts limited warranty1
1To the original owner, when product is used in an owner-occupied residence, a 7-year compressor, and 5-year parts warranty of your new equipment. See warranty certificate for complete details.
