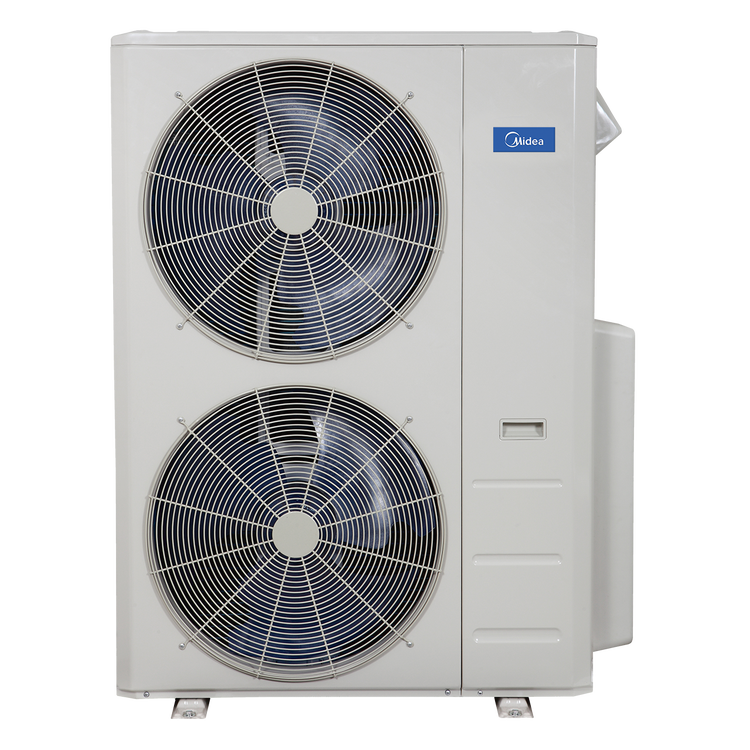

Advantage Series Multi-Zone High-Heat Heat Pump
D5CMHA
Multi-zone heat pump compatible with up to six indoor units.
Purpose: Heating & Cooling
Overview
This multi-zone high-heat heat pump can be connected to up to six indoor units, reducing the number of outdoor units needed. All indoor units can be individually controlled to match your comfort preferences. Equipped with Condenser High-temperature Protection, Refrigerant Leakage Detection and available in sizes from 1.5 to 5 tons, there is certainly a size to meet your cooling and heating needs.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-zone and multi-zone compatible
Overall Efficiency
All sizes are ENERGY STAR® certified
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 25 SEER2
Heating Energy Savings
Enhanced
Heating Efficiency
Up to 11.3 HSPF2
Outdoor Sound Performance
Quiet
Indoor Sound Performance
Not applicable
Sound Level (As Low As)
61 decibels
Cooling Operating Range
-22°~122° F (-30°~50° C)
Heating Capacity
Up to 116% Heating capacity at 5° F (-15° C) sizes 30 & 48
Heating Operating Range
-22° ~ 75° F (-30° ~ 24° C)
Sizes
1.5 – 5.0 Ton
Voltage
208/230V
Application
Residential
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- All sizes are ENERGY STAR® certified
- Up to 25 SEER2 and 15 EER2 cooling efficiency
- Up to 11.3 HSPF2 heating efficiency
- Available in 208/230V
- Connect 2 ~ 6, multiple style indoor units
- Built-in base pan heater
- Quiet outdoor sound operation, as low 61 decibels
- Aluminum Golden Hydrophilic pre-coated fins
- Total piping length: 197 ~ 262.5 ft. (40 ~ 100 m.)
- Vertical lift/drop piping length: 49 ~ 65 ft. (15 ~ 20 m.)
- Condenser high-temperature protection
- Compatible with R-454B refrigerant
- 7-year compressor, and 5-year parts limited warranty1
1To the original owner, when product is used in an owner-occupied residence, a 7-year compressor, and 5-year parts warranty of your new equipment. See warranty certificate for complete details.
