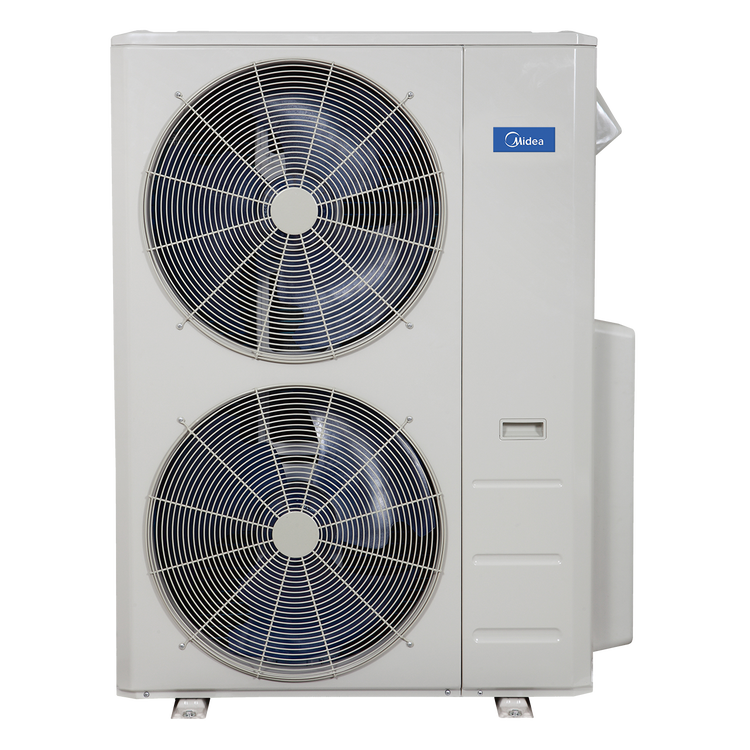

Advantage Series Multi-Zone Heat Pump
D5CMRA
Multi-zone heat pump compatible with up to six indoor units.
Purpose: Heating & Cooling
Overview
Deliver comfort to multiple spaces with this multi-zone heat pump. This energy-efficient unit provides ratings of up to 25.2 SEER2 and up to 15 EER2 with the versatility to be connected to two to six indoor units
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-zone and multi-zone compatible
Overall Efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 25.2 SEER2
Heating Energy Savings
Enhanced
Heating Efficiency
Up to 11.3 HSPF2
Outdoor Sound Performance
Extremely Quiet
Indoor Sound Performance
Not applicable
Sound Level (As Low As)
59.5 decibels
Cooling Operating Range
-13°~122° F (-25°~50° C)
Heating Operating Range
-13°~75° F (-25°~24° C)
Sizes
1.5 - 5 Ton
Voltage
208/230V
Application
Residential
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Up to 25.2 SEER2 and 15 EER2 cooling efficiency
- Up to 11.3 HSPF2 heating efficiency
- Inverter compressor
- Available in 208/230V
- Connect 2 ~ 6, multiple style indoor units
- Built-in base pan heater
- Extremely quiet outdoor sound operation, as low 59 decibels
- Aluminum Golden Hydrophilic pre-coated fins
- Total piping length: 196 ~262 ft. (60~80 m)
- Vertical lift/drop piping length: 49 ~ 65 ft. (15 ~ 20 m.)
- Compatible with R-454B refrigerant
- 7-year compressor, and 5-year parts limited warranty1
1To the original owner, when product is used in an owner-occupied residence, a 7-year compressor, and 5-year parts warranty of your new equipment. See warranty certificate for complete details.
