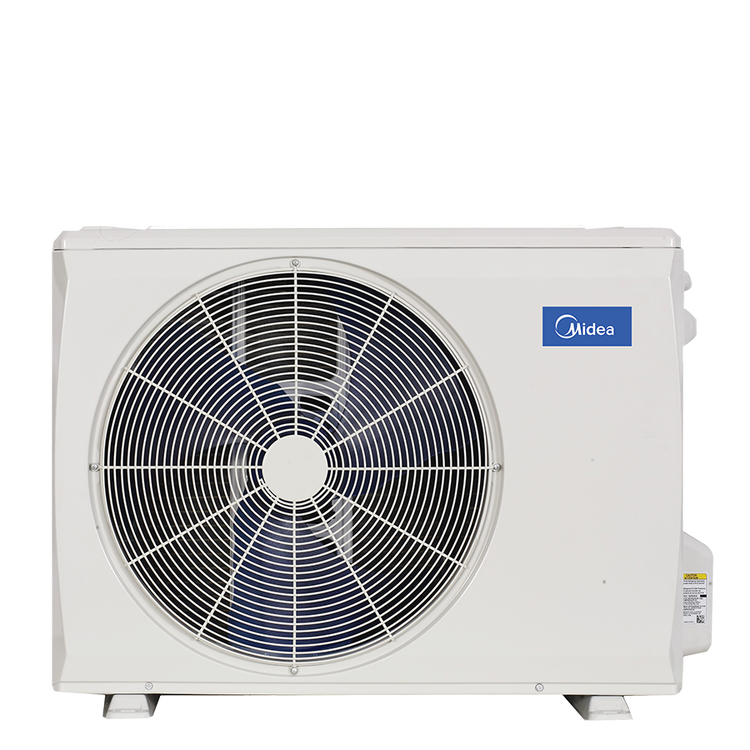

Advantage Series Single-Zone Heat Pump
D5CSRA
Single-zone heat pump system with up to 26 SEER2 and 13.9 HSPF2 for premium energy savings.
Purpose: Heating & Cooling
Overview
Efficient. Quiet. Cost-effective. This new heat pump checks all the boxes.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-Zone
Overall Efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 26 SEER2
Heating Energy Savings
Premium
Heating Efficiency
Up to 13.9 HSPF2
Outdoor Sound Performance
Extremely Quiet
Indoor Sound Performance
Not applicable
Sound Level (As Low As)
52.5 decibels
Cooling Operating Range
-22° ~ 122° F (-25° ~ 50° C)
Heating Capacity
100% heating capacity at 5° F (-15° C)
Heating Operating Range
-22° ~ 75° F (-30° ~ 25° C)
Sizes
0.75 – 3.0 Tons
Voltage
115V or 208/230V
Application
Residential
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Select sizes are ENERGY STAR® certified
- Inverter compressor
- Up to 26 SEER2 and 16.3 EER2 cooling efficiency
- Up to 13.9 HSPF2 heating efficiency
- Available in 115V and 208/230V
- Sizes: 0.75 – 3.0 Tons
- 100% heating capacity at 5° F (-15° C)
- Built-in basepan heater
- Auto-restart function
- Condenser high-temperature protection
- Extremely quiet outdoor operation, as low as 52.5 dB(A)1
- Anti-corrosive fin coating
- R-454B refrigerant continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant.
- 10-year parts limited warranty upon registration 1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
