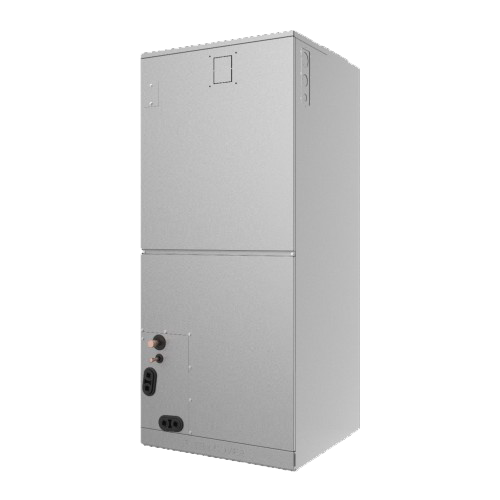

Advantage Series Light Commercial Air Handler
D5FLAA
A unique indoor air handler capable of connecting select ductless systems with traditional ducted systems
Purpose: Heating & Cooling
Overview
The D5FLAA air handler offers an adaptable solution that can be installed in both horizontal and vertical installations for larger applications. This unit can connect select ductless systems with traditional ducted systems for single-zone applications.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Air Handler
Zones
Single-zone compatible
Overall Efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Cooling Energy Savings
Varies, based on outdoor unit
Cooling Efficiency
Dependent upon outdoor unit pairing
Heating Energy Savings
Varies, based on outdoor unit
Heating Efficiency
Dependent upon outdoor unit pairing
Outdoor Sound Performance
Not applicable
Indoor Sound Performance
Quiet
Sound Level (As Low As)
25.5 decibels
Sizes
3.0 – 5.0 tons
Voltage
208/230V
Application
Light Commercial
Wireless Remote
Optional
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Select sizes are ENERGY STAR® certified based on outdoor unit pairing
- Sizes: 3 – 5 ton
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- Less than 2% air leakage
- Easy maintenance
- Quiet indoor operation
- Anti-corrosive fin coating
- Wireless remote control included
- 24V interface for third party thermostat compatibility (optional accessory)
- Factory installed refrigerant leak detection system (sensor and control board)
- Compatible with lower global warming potential R-454B refrigerant
- 7-year compressor, and 5-year parts limited warranty1
1To the original owner, when product is used in an owner-occupied residence, a 7-year compressor, and 5-year parts warranty of your new equipment. See warranty certificate for complete details.
