D5FLDA
Content

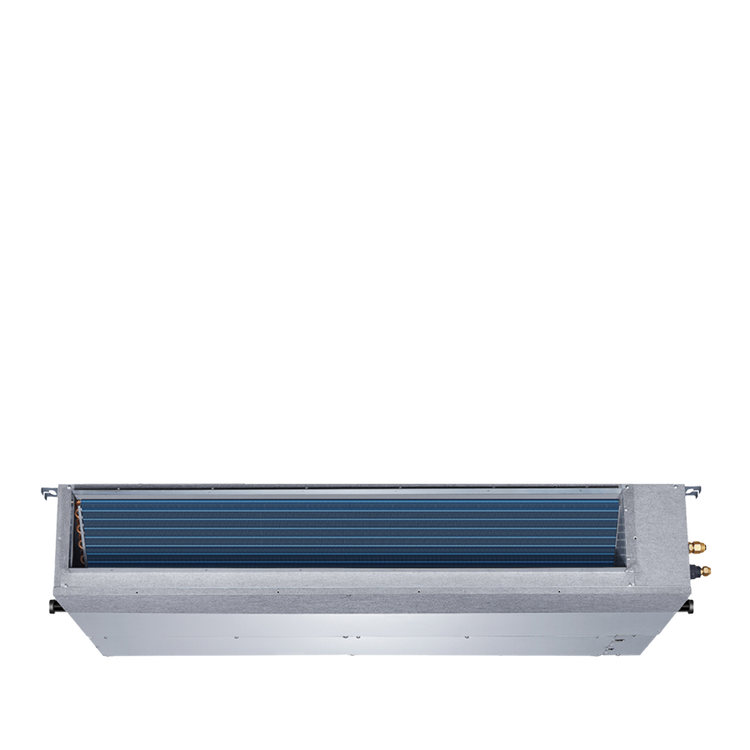

Advantage Series Light Commercial High Static Ducted Indoor Unit
D5FLDA
Quiet indoor ducted indoor unit that is compatible with single-zone Advantage systems.
Purpose: Heating & Cooling
Overview
Our high static ducted indoor model is a powerhouse unit that comes in five cooling and heating modes. Additionally, this unit is super quiet and comes equipped with features like Follow Me, which senses temperature at the handheld remote location. Contrary to popular opinion, sometimes not seeing is believing.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Ducted Indoor
Zones
Single-Zone
Overall Efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Cooling Energy Savings
Varies, based on outdoor unit
Cooling Efficiency
Dependent upon outdoor unit pairing
Heating Energy Savings
Varies, based on outdoor unit
Heating Efficiency
Dependent upon outdoor unit pairing
Outdoor Sound Performance
Not applicable
Indoor Sound Performance
Quiet
Sound Level (As Low As)
22 decibels
Sizes
3 – 4. 8 ton
Voltage
208/230V
Application
Residential
Wireless Remote
Yes
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Available in 208/230V
- Sizes: 3 – 4.8 ton
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical (sizes 36 & 48) or horizontal installation
- High static option available
- Up to 0.8 in WG
- Rear or bottom return
- Outside air intake
- Built-in condensate lift pump (high static unit)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 22 dB(A)
- Anti-corrosive fin coating
- Factory installed refrigerant leak detection system (sensor and control board)
- Single-zone compatible
- Compatible with lower global warming potential R-454B refrigerant
- 7-year compressor, and 5-year parts limited warranty1
1To the original owner, when product is used in an owner-occupied residence, a 7-year compressor, and 5-year parts warranty of your new equipment. See warranty certificate for complete details.
