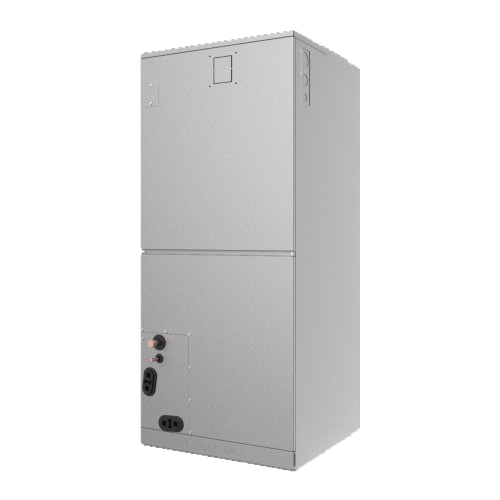

Advantage Series Air Handler
D5FUAA
A unique indoor air handler capable of connecting select ductless systems with traditional ducted systems.
Purpose: Heating & Cooling
Overview
Can replace a traditional ducted gas furnace and be connected to select ductless systems.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Air Handler
Zones
Single-Zone
Overall Efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Cooling Energy Savings
Varies, based on outdoor unit
Cooling Efficiency
Dependent upon outdoor unit pairing
Heating Energy Savings
Varies, based on outdoor unit
Heating Efficiency
Dependent upon outdoor unit pairing
Outdoor Sound Performance
Not applicable
Indoor Sound Performance
Quiet
Sound Level (As Low As)
25.5 decibels
Sizes
1.5 - 5 ton
Voltage
208/230V/115V
Application
Residential
Wireless Remote
Optional
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Sizes: 1.5 - 5 ton
- Modes: Cool, Heat, Dry, Fan, Auto
- 4-way installation (Up flow, Down flow, Right, Left)
- All aluminum coil for corrosion-resistance
- Automatic Airflow Technology with static pressure up to 0.8 in WG
- Less than 2% air leakage
- Easy maintenance
- Quiet indoor operation
- Wireless remote control included
- 24V interface for third party thermostat compatibility built-in
- Factory installed leak detection system (sensor and control board)
- Compatible with lower global warming potential R-454B refrigerant
- 10-year parts limited warranty upon registration 1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
