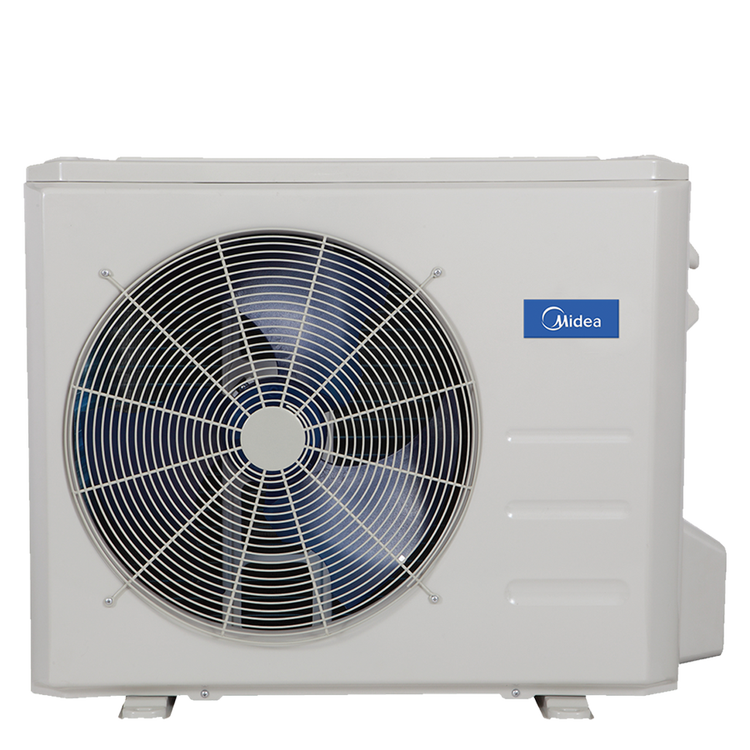

Max Series Single-Zone Heat Pump

DLCPRB

Single-zone heat pump system with up to 27 SEER2 and 17.5 HSPF2 for premium energy savings.

Purpose: Heating & Cooling

Overview

A versatile outdoor unit for precise temperature control. Extra low temperature heating for when it’s cold outside. The heat output for this system is up to 75% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.

The stepless frequency adjustment offers precise control of the system, while maintaining stable and constant room temperature while reducing sound level and saving energy.

View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-Zone
Overall Efficiency
All systems are ENERGY STAR® certified
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 27 SEER2
Heating Energy Savings
Premium
Heating Efficiency
Up to 17.5 HSPF2
Outdoor Sound Performance
Extremely Quiet
Indoor Sound Performance
Not applicable
Sound Level (As Low As)
55.5 decibels
Cooling Capacity
100% at -22° F (-30° C) without additional kit
Cooling Operating Range
-22° ~ 122°F (-30° ~ 50° C)
Heating Capacity
100% at 0° F (-17° C) Up to 75% at -22° F (-30° C)
Heating Operating Range
-22° ~ 86°F (-25° ~ 30° C)
Sizes
09 / 12 / 18 / 24
Voltage
208/230V
Application
Residential
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds

California residents please see Proposition 65

Product Features

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
